Wireless Call Buttons
More freedom. Less wiring.
Liftlogic’s wireless pushbutton solution makes it easy to add or reposition call buttons without running additional wiring to the button location.

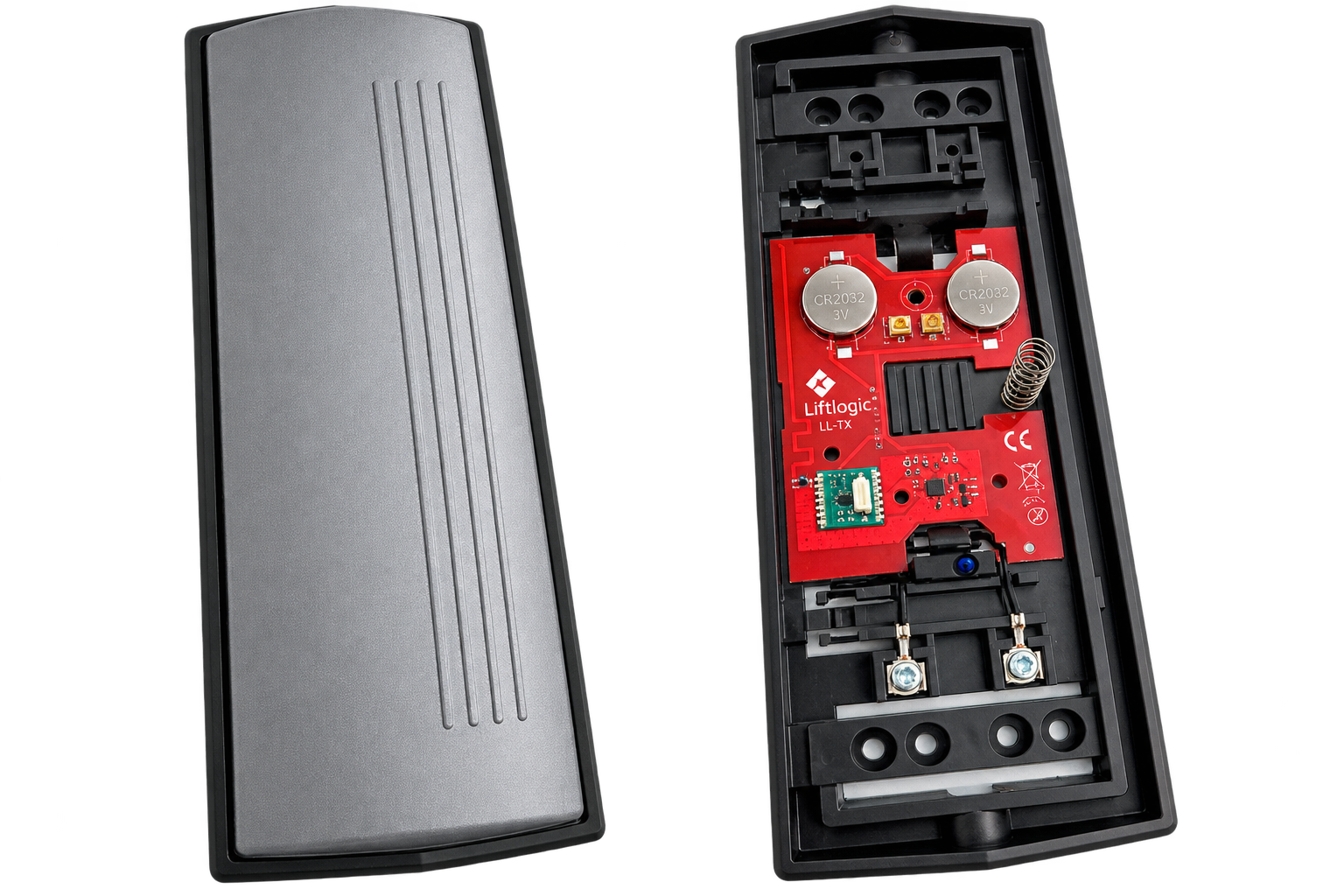

The system consists of a compact radio receiver combined with wireless transmitters such as a standard pushbutton or an elbow-operated switch. It is particularly useful where running new cables is difficult, undesirable or simply unnecessary.
The receiver can be connected directly to a conventional call input, making the solution suitable for both new installations and upgrades of existing systems.
Features
• Wireless connection between pushbutton and receiver

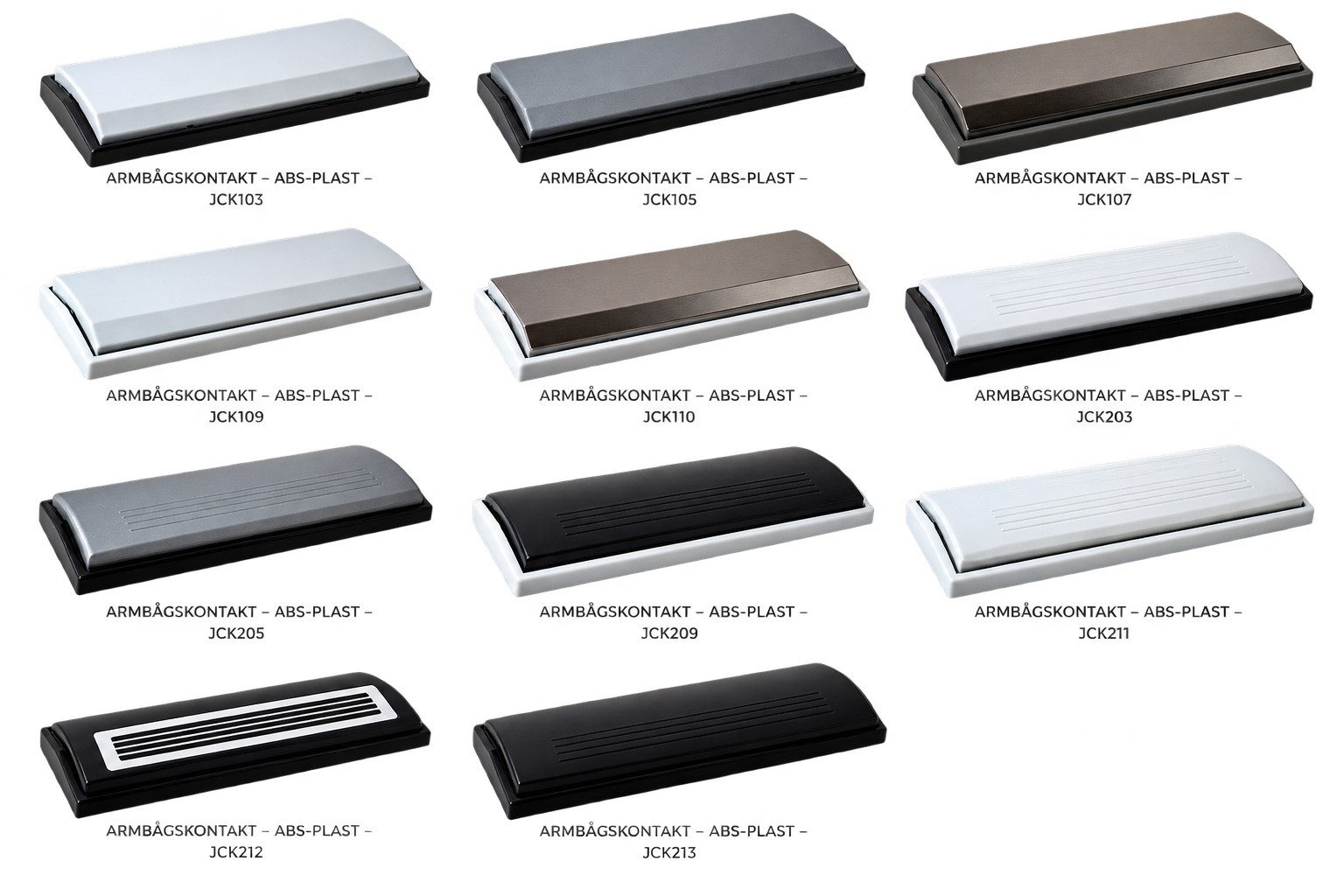

• Available with standard pushbutton or elbow-operated switch
• Reduces the need for additional cabling
• Suitable for new installations as well as retrofit applications
• Analog connection for conventional call signals
• Compact receiver – only 60 x 60 x 15 mm
• Simple teach function for pairing transmitters with the receiver
• LED indication for receiver status and signal strength
• Easy transmitter testing directly after pairing
• Transmitter is compatible with the standard T20 protocol if you already have a receiver in place
Simple setup
Pairing a transmitter with the receiver is quick and straightforward. Press and hold the Teach button on the receiver for three seconds, activate the wireless pushbutton and the receiver stores the transmitter.
The integrated LEDs provide immediate feedback during setup and indicate both received transmitter signals and signal strength.
Technical data – Radio receiver
Analog supply voltage: 10–30 VDC
D3Bus supply voltage: 24–30 VDC
Power consumption: <15 mA without load
Output: Max. 30 mA
Humidity: <85% RH
Operating temperature:+5°C to +40°C
Dimensions: 60 x 60 x 15 mm
